Вид
|
Тройник |
|
Тип
|
Стальной |
|
DN
|
15-1000 |
|
Материал
|
Сталь |
|
Среда
|
масло, вода, неагрессивные и агрессивные среды, смеси |
|
Присоединение
|
под приварку |
|
Давление, PN
|
до 16 |
|
Марка стали
|
ст.09Г2С |
|
ГОСТ/ТУ
|
ГОСТ 17375-2001 |
Отводом называют соединительную часть трубопроводной системы, которая позволяет реализовать плавное изменение направление движения трубопровода. Данного рода устройство используется на магистральных и промышленных трубопроводах, применяется при монтажах и ремонте компрессорных и насосных станций, отопительных систем.
Особенности и преимущества стальных отводов по ГОСТ 17375-2001

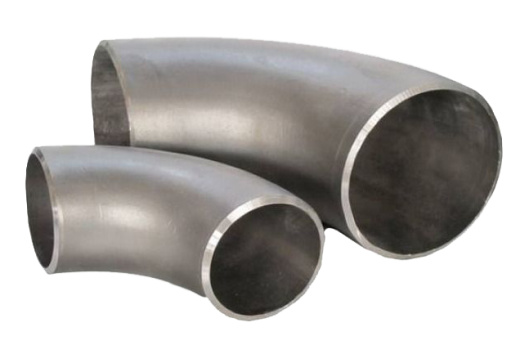

Стальные отводы имеют вид согнутой трубы. Рабочей средой для отвода является масло, вода, неагрессивные и агрессивные среды, смеси. Изготавливают стальные отводы методами холодной штамповки или же горячей протяжки.
Материалами изготовления этих отводов являются низколегированная, жаростойкая, углеродистая, высоколегированная устойчивая к коррозии сталь.
Одними из самых востребованных отводов являются нержавеющие отводы из стали 12Х18Н10Т, потому что они обладают целым рядом различных преимуществ, таких как:
- Устойчивость к коррозии;
- Повышенная износоустойчивость;
- Пластичность;
- Структура нержавеющего материала такова, что не меняется под воздействием температур
- Взрыво- и пожаробезопасность.

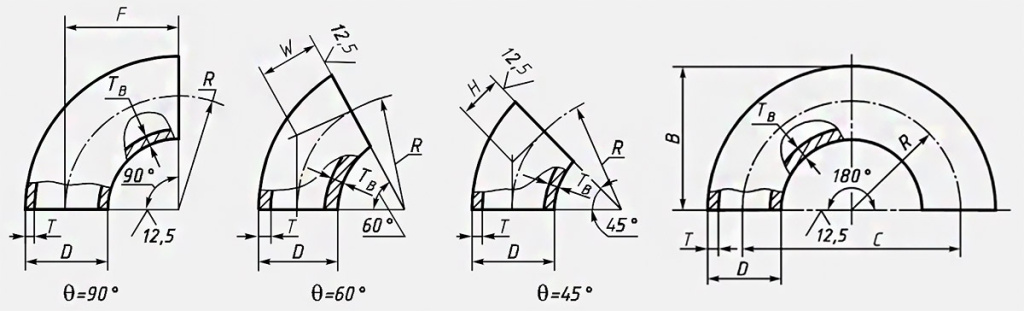

Размеры стальных отводов
|
DN |
D |
Т |
F = R |
W |
Н |
С |
В |
Масса отвода с θ = 90°, кг |
|---|---|---|---|---|---|---|---|---|
|
25 |
32 |
2,0 |
38 |
22 |
18 |
76 |
56 |
0,1 |
|
2,5 |
0,2 |
|||||||
|
3,0 |
0,2 |
|||||||
|
3,5 |
0,2 |
|||||||
|
32 |
38 |
2,0 |
48 |
28 |
23 |
96 |
69 |
0,2 |
|
2,5 |
0,2 |
|||||||
|
3,0 |
0,2 |
|||||||
|
3,5 |
0,3 |
|||||||
|
4,0 |
0,3 |
|||||||
|
40 |
45 |
2,5 |
60 |
35 |
25 |
120 |
83 |
0,3 |
|
3,0 |
0,3 |
|||||||
|
3,5 |
0,4 |
|||||||
|
4,0 |
0,4 |
|||||||
|
5,0 |
0,5 |
|||||||
|
50 |
57 |
2,5 |
75 |
43 |
30 |
150 |
104 |
0,4 |
|
3,0 |
0,5 |
|||||||
|
3,5 |
0,6 |
|||||||
|
4,0 |
0,7 |
|||||||
|
4,5 |
0,7 |
|||||||
|
5,0 |
0,8 |
|||||||
|
5,5 |
0,9 |
|||||||
|
6,0 |
1,0 |
|||||||
|
65 |
76 |
3,0 |
100 |
57 |
41 |
200 |
138 |
0,8 |
|
3,5 |
1,0 |
|||||||
|
4,0 |
1,1 |
|||||||
|
4,5 |
1,3 |
|||||||
|
5,0 |
1,4 |
|||||||
|
5,5 |
1,6 |
|||||||
|
6,0 |
1,7 |
|||||||
|
7,0 |
2,0 |
|||||||
|
8,0 |
2,2 |
|||||||
|
80 |
89 |
3,0 |
120 |
69 |
50 |
240 |
165 |
1,2 |
|
3,5 |
1,4 |
|||||||
|
4,0 |
1,5 |
|||||||
|
4,5 |
1,7 |
|||||||
|
5,0 |
1,9 |
|||||||
|
5,5 |
2,1 |
|||||||
|
6,0 |
2,3 |
|||||||
|
7,0 |
2,7 |
|||||||
|
8,0 |
3,0 |
|||||||
|
100 |
102 |
3,5 |
150 |
87 |
62 |
300 |
201 |
2,1 |
|
4,0 |
2,4 |
|||||||
|
4,5 |
2,6 |
|||||||
|
5,0 |
2,9 |
|||||||
|
6,0 |
3,4 |
|||||||
|
7,0 |
3,9 |
|||||||
|
8,0 |
4,5 |
|||||||
|
9,0 |
5,0 |
|||||||
|
10,0 |
5,5 |
|||||||
|
108 |
3,5 |
204 |
2,2 |
|||||
|
4,0 |
2,5 |
|||||||
|
4,5 |
2,8 |
|||||||
|
50 |
3,1 |
|||||||
|
6,0 |
3,6 |
|||||||
|
7,0 |
4,1 |
|||||||
|
8,0 |
4,7 |
|||||||
|
9,0 |
5,3 |
|||||||
|
10,0 |
5,8 |
|||||||
|
114 |
3,5 |
207 |
2,2 |
|||||
|
4,0 |
2,6 |
|||||||
|
4,5 |
2,9 |
|||||||
|
5,0 |
3,3 |
|||||||
|
6,0 |
3,8 |
|||||||
|
7,0 |
4,4 |
|||||||
|
8,0 |
5,0 |
|||||||
|
9,0 |
5,7 |
|||||||
|
10,0 |
6,1 |
|||||||
|
125 |
133 |
3,5 |
190 |
110 |
79 |
380 |
257 |
3,3 |
|
4,0 |
3,8 |
|||||||
|
4,5 |
4,3 |
|||||||
|
5,0 |
4,8 |
|||||||
|
6,0 |
5,7 |
|||||||
|
7,0 |
6,5 |
|||||||
|
8,0 |
7,4 |
|||||||
|
9,0 |
8,2 |
|||||||
|
10,0 |
9,1 |
|||||||
|
11,0 |
10,0 |
|||||||
|
12,0 |
11,0 |
|||||||
|
150 |
159 |
4,0 |
225 |
130 |
93 |
450 |
305 |
5,4 |
|
4,5 |
6,1 |
|||||||
|
5,0 |
6,7 |
|||||||
|
6,0 |
8,1 |
|||||||
|
7,0 |
9,4 |
|||||||
|
8,0 |
11,0 |
|||||||
|
9,0 |
12,0 |
|||||||
|
10,0 |
13,0 |
|||||||
|
11,0 |
14,0 |
|||||||
|
12,0 |
16,0 |
|||||||
|
13,0 |
17,0 |
|||||||
|
14,0 |
18,0 |
|||||||
|
168 |
4,0 |
5,6 |
||||||
|
4,5 |
6,4 |
|||||||
|
5,0 |
7,1 |
|||||||
|
6,0 |
8,5 |
|||||||
|
7,0 |
9,8 |
|||||||
|
8,0 |
11,2 |
|||||||
|
9,0 |
12,5 |
|||||||
|
10,0 |
14,0 |
|||||||
|
11,0 |
15,0 |
|||||||
|
12,0 |
16,0 |
|||||||
|
13,0 |
17,5 |
|||||||
|
14,0 |
19,0 |
|||||||
|
200 |
219 |
5,0 |
300 |
173 |
124 |
600 |
410 |
13,0 |
|
6,0 |
15,0 |
|||||||
|
7,0 |
17,0 |
|||||||
|
8,0 |
20,0 |
|||||||
|
9,0 |
22,0 |
|||||||
|
10,0 |
25,0 |
|||||||
|
11,0 |
27,0 |
|||||||
|
12,0 |
29,0 |
|||||||
|
13,0 |
32,0 |
|||||||
|
14,0 |
34,0 |
|||||||
|
15,0 |
37,0 |
|||||||
|
16,0 |
39,0 |
|||||||
|
17,0 |
42,0 |
|||||||
|
18,0 |
44,0 |
|||||||
|
250 |
273 |
6,0 |
375 |
217 |
155 |
750 |
512 |
23,0 |
|
7,0 |
27,0 |
|||||||
|
8,0 |
31,0 |
|||||||
|
9,0 |
35,0 |
|||||||
|
10,0 |
39,0 |
|||||||
|
11,0 |
43,0 |
|||||||
|
12,0 |
46,0 |
|||||||
|
13,0 |
50,0 |
|||||||
|
14,0 |
54,0 |
|||||||
|
15,0 |
58,0 |
|||||||
|
16,0 |
61,0 |
|||||||
|
17,0 |
66,0 |
|||||||
|
18,0 |
70,0 |
|||||||
|
20,0 |
78,0 |
|||||||
|
22,0 |
85,0 |
|||||||
|
300 |
325 |
7,0 |
450 |
260 |
186 |
900 |
613 |
39,0 |
|
8,0 |
45,0 |
|||||||
|
9,0 |
50,0 |
|||||||
|
10,0 |
56,0 |
|||||||
|
11,0 |
61,0 |
|||||||
|
12,0 |
66,0 |
|||||||
|
13,0 |
72,0 |
|||||||
|
14,0 |
77,0 |
|||||||
|
15,0 |
82,0 |
|||||||
|
16,0 |
87,0 |
|||||||
|
17,0 |
92,0 |
|||||||
|
18,0 |
96,0 |
|||||||
|
20,0 |
107,0 |
|||||||
|
22,0 |
118,0 |
|||||||
|
24,0 |
130,0 |
|||||||
|
26,0 |
141,0 |
|||||||
|
28,0 |
150,0 |
|||||||
|
350 |
377 |
9,0 |
525 |
303 |
217 |
1050 |
714 |
68,0 |
|
10,0 |
75,0 |
|||||||
|
11,0 |
83,0 |
|||||||
|
12,0 |
90,0 |
|||||||
|
13,0 |
97,0 |
|||||||
|
14,0 |
104,0 |
|||||||
|
15,0 |
112,0 |
|||||||
|
16,0 |
119,0 |
|||||||
|
18,0 |
133,0 |
|||||||
|
20,0 |
147,0 |
|||||||
|
22,0 |
161,0 |
|||||||
|
24,0 |
175,0 |
|||||||
|
26,0 |
188,0 |
|||||||
|
28,0 |
201,0 |
|||||||
|
30,0 |
214,0 |
|||||||
|
32,0 |
228,0 |
|||||||
|
400 |
426 |
8,0 |
600 |
346 |
248 |
1200 |
813 |
78,0 |
|
9,0 |
87,0 |
|||||||
|
10,0 |
97,0 |
|||||||
|
11,0 |
107,0 |
|||||||
|
12,0 |
117,0 |
|||||||
|
13,0 |
126,0 |
|||||||
|
14,0 |
135,0 |
|||||||
|
15,0 |
145,0 |
|||||||
|
16,0 |
154,0 |
|||||||
|
17,0 |
164,0 |
|||||||
|
18,0 |
173,0 |
|||||||
|
20,0 |
192,0 |
|||||||
|
22,0 |
210,0 |
|||||||
|
24,0 |
230,0 |
|||||||
|
26,0 |
249,0 |
|||||||
|
28,0 |
268,0 |
|||||||
|
30,0 |
286,0 |
|||||||
|
32,0 |
306,0 |
|||||||
|
34,0 |
324,0 |
|||||||
|
500 |
530 |
9,0 |
750 |
433 |
310 |
1500 |
1015 |
138,0 |
|
10,0 |
153,0 |
|||||||
|
11,0 |
168,0 |
|||||||
|
12,0 |
183,0 |
|||||||
|
13,0 |
198,0 |
|||||||
|
14,0 |
212,0 |
|||||||
|
15,0 |
227,0 |
|||||||
|
16,0 |
